JIC - uhlové 90°

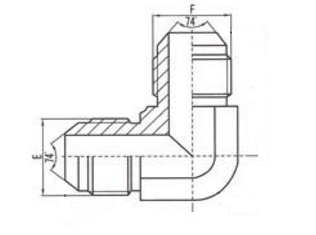

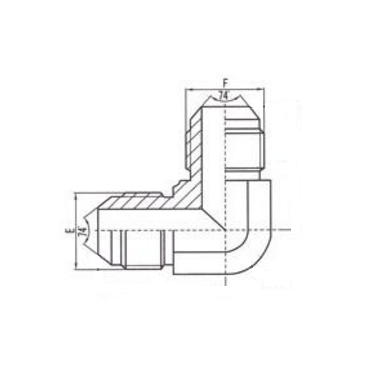

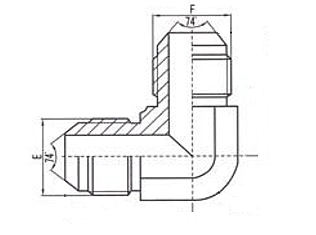

spojka 90° JIC - JIC

hydraulické šróbenie:spojka 90° JIC - JIC
kód.	E	F
JJ9-02	5/16	5/16
JJ9-03	3/8	3/8
JJ9-04	7/16	7/16
JJ9-05	1/2	1/2
JJ9-05-06	1/2	9/16
JJ9-06	9/16	9/16
JJ9-06-08	9/16	3/4
JJ9-06-10	9/16	7/8
JJ9-08	3/4	3/4
JJ9-08-10	3/4	7/8
JJ9-10	7/8	7/8
JJ9-10-12	7/8	1.1/16
JJ9-12	1.1/16	1.1/16
JJ9-14	1.3/16	1.3/16
JJ9-16	1.5/16	1.5/16
JJ9-20	1.5/8	1.5/8
JJ9-24	1.7/8	1.7/8
JJ9-32	2.1/2	2.1/2

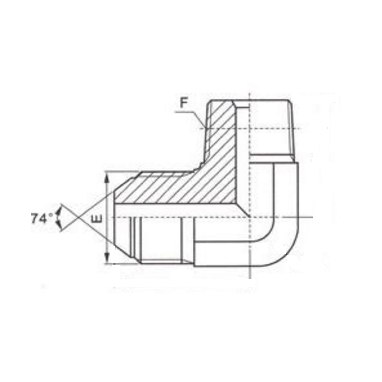

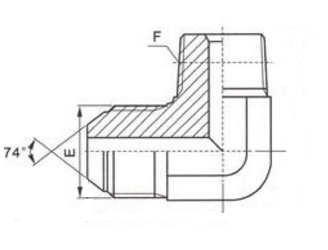

prípojka 90° JIC - BSP

hydraulické šróbenie:pripojka 90° JIC - BSP (kónický)
kód.	E	F
JJT9SP-02	5/16	R1/8
JJT9SP-04-02	7/16	R1/8
JJT9SP-04	7/16	R1/4
JJT9SP-04-06	7/16	R3/8
JJT9SP-05-02	1/2	R1/8
JJT9SP-05-04	1/2	R1/4
JJT9SP-05-06	1/2	R3/8
JJT9SP-06-02	9/16	R1/8
JJT9SP-06-04	9/16	R1/4
JJT9SP-06	9/16	R3/8
JJT9SP-06-08	9/16	R1/2
JJT9SP-08-04	3/4	R1/4
JJT9SP-08-06	3/4	R3/8
JJT9SP-08	3/4	R1/2
JJT9SP-08-12	3/4	R3/4
JJT9SP-10-06	7/8	R3/8
JJT9SP-10-08	7/8	R1/2
JJT9SP-10-12	7/8	R3/4
JJT9SP-12-08	1.1/16	R1/2
JJT9SP-12	1.1/16	R3/4
JJT9SP-12-16	1.1/16	R1
JJT9SP-16-12	1.5/16	R3/4
JJT9SP-16	1.5/16	R1
JJT9SP-16-20	1.5/16	R1.1/4
JJT9SP-20-16	1.5/8	R1
JJT9SP-20	1.5/8	R1.1/4
JJT9SP-24-20	1.7/8	R1.1/4
JJT9SP-24	1.7/8	R1.1/2
JJT9SP-24-32	1.7/8	R2
JJT9SP-32	2.1/2	R2

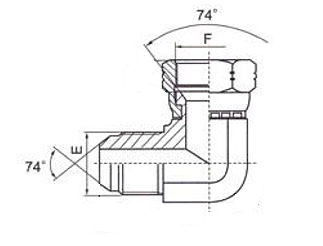

prípojka nastaviteľná 90° JIC - JIC

hydraulické šróbenie:prípojka nastaviteľná 90° JIC - JIC
kód.	E	F
J2J9-02	5/16	5/16
J2J9-03	3/8	3/8
J2J9-04	7/16	7/16
J2J9-05	1/2	1/2
J2J9-06	9/16	9/16
J2J9-06-08	9/16	3/4
J2J9-08-06	3/4	9/16
J2J9-08	3/4	3/4
J2J9-08-10	3/4	7/8
J2J9-10	7/8	7/8
J2J9-10-08	7/8	3/4
J2J9-10-12	7/8	7/8
J2J9-12	1.1/16	7/8
J2J9-12-10	1.1/16	7/8
J2J9-12-16	1.1/16	1.5/16
J2J9-14	1.3/16	1.3/16
J2J9-16	1.5/16	1.5/16
J2J9-16-20	1.5/16	1.5/8
J2J9-20-16	1.5/8	1.5/16
J2J9-20	1.5/8	1.5/8
J2J9-20-24	1.5/8	1.7/8
J2J9-24-20	1.7/8	1.5/8
J2J9-24	1.7/8	1.7/8
J2J9-32	2.1/2	2.1/2
