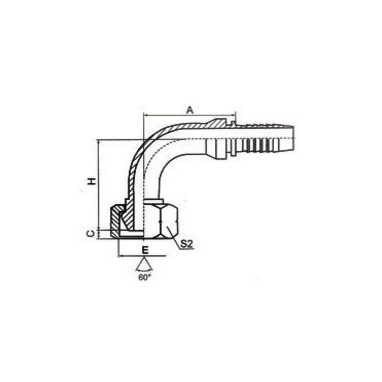

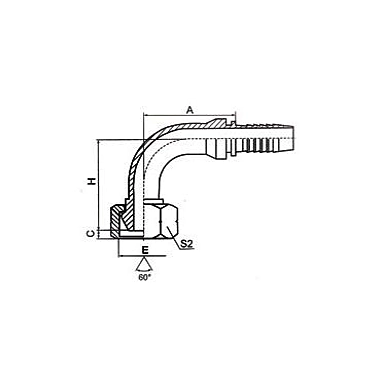

DKR 90°
| kód. | E | DN | DASH | C | S2 | H |
|---|---|---|---|---|---|---|
| DKR269-04-04 | G1/4X19 | 6 | 4 | 5,5 | 19 | 36,5 |
| DKR269-06-06 | G3/8X19 | 10 | 6 | 6,3 | 22 | 43 |
| DKR269-08-08 | G1/2X19 | 12 | 8 | 7,5 | 27 | 51 |
| DKR269-10-10 | G5/8X14 | 16 | 10 | 9,5 | 30 | 56 |
| DKR269-12-12 | G3/4X14 | 20 | 12 | 10,9 | 32 | 66 |
| DKR269-16-16 | G1X11 | 25 | 16 | 117,7 | 41 | 73,8 |
| DKR269-20-20 | G1.1/4X11 | 32 | 20 | 11 | 50 | 87 |
| DKR269-24-24 | G1.1/2X11 | 40 | 24 | 13 | 55 | 102 |
| DKR269-32-32 | G2X11 | 50 | 32 | 16 | 70 | 123,3 |
