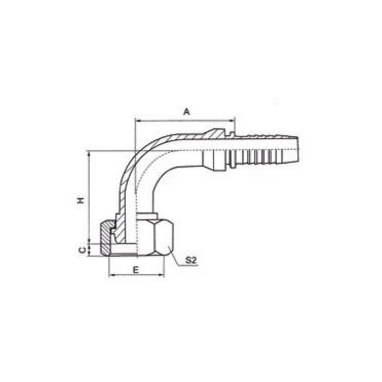

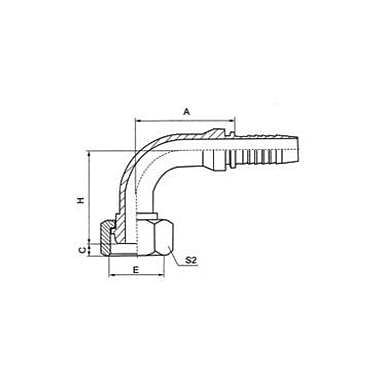

DKL 90°
| kód. | E | DN | DASH | O.D. | H | C | S2 |
|---|---|---|---|---|---|---|---|
| DKL249C-12-04 | M12X1.5 | 6 | 04 | 6 | 30 | 3,5 | 17 |
| DKL249C-14-04 | M14X1.5 | 6 | 04 | 8 | 30 | 3,5 | 19 |
| DKL249C-16-05 | M16X1.5 | 8 | 05 | 10 | 33 | 3,5 | 22 |
| DKL249C-18-06 | M18X1.5 | 10 | 06 | 12 | 35,3 | 3 | 24 |
| DKL249C-22-08 | M22X1.5 | 12 | 08 | 15 | 41 | 4,5 | 17 |
| DKL249C-27-10 | M27X1.5 | 16 | 10 | 18 | 57 | 5,5 | 32 |
| DKL249C-30-12 | M30X2 | 20 | 12 | 22 | 65 | 7 | 36 |
| DKL249C-36-16 | M36X1.5 | 25 | 16 | 28 | 71 | 6,5 | 41 |
| DKL249C-45-20 | M45X2 | 32 | 20 | 32 | 90 | 7 | 55 |
| DKL249C-52-24 | M52X2 | 40 | 24 | 42 | 109 | 8 | 60 |
